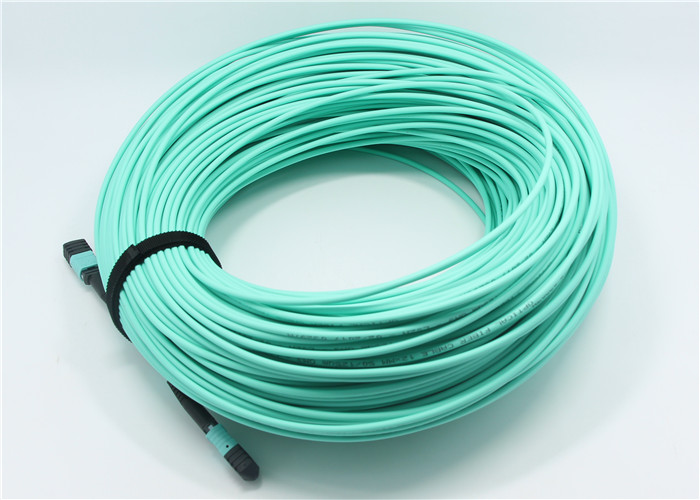

OM3 12F 200M 3.0mm MPO Female 50 / 125μm MPO Trunk Cable Aque LSZH
For 40G / 100G Data Center Solution
MPO-MPO 3.0mm LSZH Patch cable/trunk cable. MPO Fiber Patch
cable/trunk cable is terminated with MPO connector on both ends.
MPO Patch cable/trunk cables connect MPO modules together as a
permanent link. The Patch cable/trunk cables are available with 12,
24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data
center solutions. They are typically adopted to interconnect
cassettes, panels or ruggedized MPO fan-outs, and to facilitate
rapid deployment of high-density backbone cabling in data centers
and other high fiber environments. Besides, MPO also provides much
flexibility and convenience once you have to change the connector
style in the patch panels. Instead of changing the connector on the
cable trunk, just installing a new cassette with the new connector
style on the crossconnect side of the patch panel.
MPO trunk cable ’s Specification:
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
Insertion loss (MPO) (IEC 61300-3-34) | Standard loss:≤0.75dB(max), ≤0.35dB(Typical) Super Low loss:≤0.35dB(max), ≤0.20dB(Typical) | Standard loss:≤0.6dB(max), ≤0.35(Typical) Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical) |
| Return loss(MPO) | ≥60dB(8degree polishing) | ≥25dB |
| Durability | <0.3dBtypical change, 200 matings |
| Interchangeability | ≤0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -40 to + 85°C |
MPO Interference index
| Connector type | Testing items | Min | Max |
| MPO PC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | |
| Angle_X(deg) | -0.2 | 0.2 |
| Angle_Y(deg) | -0.2 | 0.2 |
| Max.DH.All Fiber(nm) | -600 | 600 |
| Max.DH.Ave(nm) | -300 | 300 |
| Max.DH.Adj(nm) | -300 | 300 |
| Max. Core Dip(nm) | -300 | 300 |
| Fiber height(nm) | -300 | 300 |
| ROC_X(abs)(mm) | 1000 | 3000 |
| MPO APC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | |
| Angle_X(deg) | -0.2 | 0.2 |
| Angle_Y(deg) | 7.8 | 8.2 |
| Max.DH.All Fiber(nm) | -600 | 600 |
| Max.DH.Ave(nm) | -300 | 300 |
| Max.DH.Adj(nm) | -300 | 300 |
| Fiberheight(nm) | | |
High Quality MPO Cable Guarantee
1. High-performance polishing machine, and complemented by
precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing
process, and making all parameters of the polished MT ferrule
complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of
optical testing required for complex and high fiber count cable
assemblies.
MPO Connector Types
Two other clearly visible features are the noses and guide grooves
(keys) on the top side. (Note: Female connector need to connect with male connector type.) |
Pre-terminated MPO Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to
guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers,
please choose the Type B Cross as polarity; when it is connected
with other equipment such as MPO LGX Cassette, you can choose any
of the polarities as you need.
Packaging
This easily taken and well-protected fiber patch cable package has
been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm .
Which carton to be used depends on goods
Qty . Packing can be customized.
