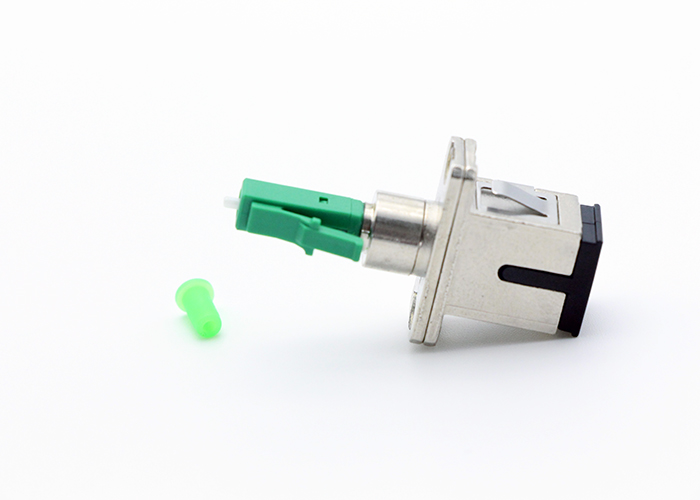

SC Female to LC Male Simplex 9 / 125μm Fiber Optic Adapter Coupling
With Metal Material
Female to male conversion adapter adopt embedded optical fiber connector and optical fiber ferrule
matching Sleeve joint technology. The products can hybrid a type of
fiber optic connectors (male) into another type of optical fiber
connector (male). It keeps the advantages of small size, light
signal stable, easy to use characteristics, widely used in optical
fiber equipment instrument testing and rescue project construction
field.
This SC(Female) to LC(Male) type fiber optic conversion adapter, Converting SC connector to LC Connector. Variable SC interface
conversion LC interface. Provided a simple and reliable solution
for connecting two different optic fiber transmission joints.
Features
Low insertion loss
High corrosion resistance
High interface performance
High return loss
Easy to handle
Environmentally stable
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM-50/125 PC | MM-62.5/125 PC |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB | ≥35 dB |
| Durability (500 Mating) | 0.2dB Max. |
| Operation Temp | -40～+85 |
| Storage Temp | -40～+85 |
| Remark: SC Female to LC Male Hybrid Adapter are ultra-reliable
components featuring low insertion loss and back reflection loss.
You can select single mode 9/125um or multimode 62.5/125um or
multimode 50/125um. |
Application:
Telecom network
Optical data transmission connection
Fiber optic equipment testing and engineering rescue construction

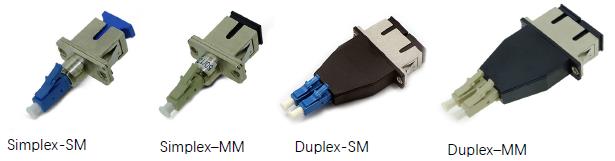

Available for Simplex and Duplex , SM UPC, SM APC, MM OM1 62.5/125,
MM OM2 50/125
Product Details:
Package method:
Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box
Other size carton is available too.
