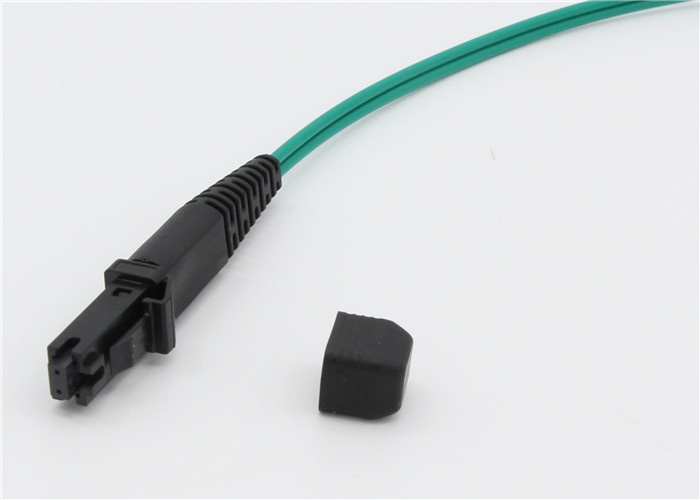

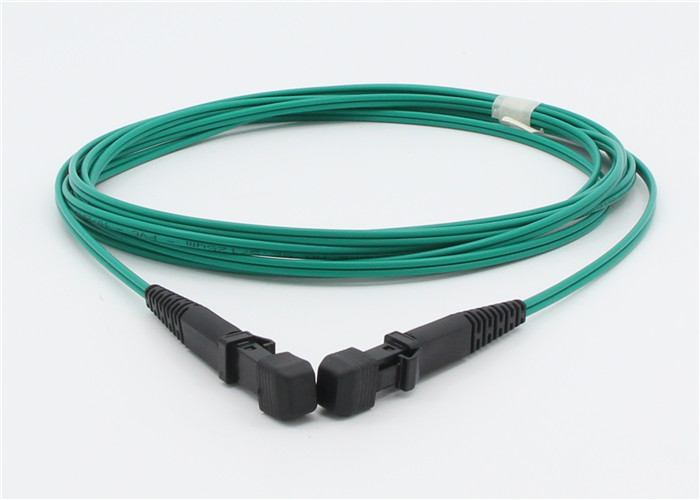

OM1 5M 62.5 / 125μm 2.0mm Simplex MTRJ - MTRJ Fibre Optic Patch
Cord With PVC Green Jacket
Fiber Optic Patch cords are ultra reliable components featuring low
insertion loss and return loss. They come with your choice of
simplex or duplex cable configuration and are made to conform to
IEC, Telcordia GR-326-CORE Standard.
Environmental Reliability Test
The performance of the patch cords has been carefully designed to
meet the IEC standards, GR-326-CORE, in the test of optical
characteristics, vibration test, thermal cycling, impact
resistance, salt spray erosion, thermal aging, humidity resistance
and others.
The 62.5/125μm OM1 multimode fiber optic cable is suitable for fast
Ethernet, gigabit Ethernet and fiber channel applications, such as
in data center, telecom room, server farms, cloud storage networks,
and any place fiber jumper cables are needed.
This 62.5/125 OM1 multimode fiber optic cable is ideal for
connecting 100/1000BASE-SX transceivers etc. for fast Ethernet,
gigabit Ethernet and fiber channel applications.
Optical Specifications
| Connector Type | MTRJ - MTRJ | Polish Type | PC-PC |
| Fiber Count | Duplex | Fiber Mode | 62.5/125μm |
| Wavelength | 850/1300nm | 1G Ethernet Distance | 280m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | G651 | Minimum Bend Radius | 15mm |
| Attenuation at 850nm | 3.0 dB/km | Attenuation at 1300nm | 1.0 dB/km |
| Cable Jacket | PVC | Cable Diameter | 2.0mm |
| Polarity | A(Tx) to B(Rx) | Operating Temperature | -20~70°C |
Key Features:
1. Low insertion loss
2. Low return loss
3. Various connector types available
4. Easy installation
5. Environmentally stable
Applications:
1. Fiber Optic Telecommunications
2. LAN (Local Area Network)
3. FTTH (Fiber To The Home)
4. CATV&CCTV
5. High speed transmission systems
6. Fiber optic sensing
End-face Quality (MM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 65 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 65 to 115 | None | None |
| C: Adhesive | 115 to 135 | None | None |
| D: Contact | 135 to 250 | None | None |
| E: Rest of ferrule | None | None |
Length tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Packaging
This easily taken and well-protected fiber patch cable package has
been labelled and marked by OMC as de-
fault .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34
cm . Which carton to be used depends on goods
Qty . Packing can be customized.
How to Choose The Right Fiber Optic Cable Type?
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and
allows 10 Gig / second link distances of up to 550 Meters (compared
to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that
of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000
MHz.km.
| Designation | Fiber Dia.(μm) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
| OM1 | 62.5/125 | Multimode | 2000 Meters | 275 Meters | 550 Meters | 33 Meters | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 82 Meters | Not supported | Not supported |
| OM3(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 300 Meters | 100 Meters(SR4) | 100 Meters(SR4) |
| OM4(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 400 Meters | 150 Meters(SR4) | 150 Meters(SR4) |
| Singlemode | 9/125 | Singlemode | 2000 Meters | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A | N/A |
