48cores Fiber breakout patch cord E2000 APC - E2000 APC SM 9 / 125
fanout 2 .00mm 0.5M tail ,20M LSZH Low loss 0.3dB
Patch Cords are used to provide optical connection for fiber optic
electronics. The use of the patch cord provides a quick and easy
method for routing fiber patches in data centers, head-ends,
cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path
connecting the incoming fibers to the electronic equipment and
providing patching within the fiber paths.
OMC’s Breakout fiber patch cord can be used as a building backbone
or horizontal distribution, and they are operating in an
uncontrolled or harsh environment.
Products info
| Fiber count | 48 | Fiber Mode | 9/125μm |
| Connector Type1 | E2000/APC | Connector Type2 | E2000/APC |
| Fiber Mode | 9/125μm | Breakout length | 0.5m |
| Wavelength | 1310/1550nm | Jacket Material | PVC/LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
Geometric Specification (only for 3D interferometer tested)
| Test items | Connectors | PC End-face | APC End-face |
| Radius of Curvature | E2000 | 10~25 mm | 5~12 mm |
| Apex Offset | ≤50 um |
| Fiber Spherical Height | +/- 50 nm |
| Angular Offset | ------ | 8°± 0.2° |
OEM Service.
OMC also provides a full set of OEM services, such as fiber
connector, length, color, fiber grade, specification, material,
package etc.

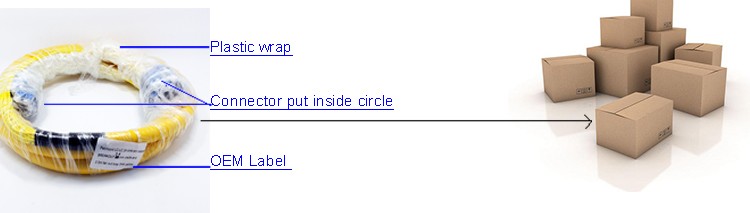

Packaging & Labeling
This easy to take and well-protected fiber optical cable package
has been labelled and marked by OMC as default.
How to Choose The Right Fiber Optic Cable Type?
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and
allows 10 Gig / second link distances of up to 550 Meters (compared
to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that
of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000
MHz.km.
| Designation | Fiber Dia.(μm) | Type | Fast Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
| OM1 | 62.5/125 | Multimode | 2000 Meters | 275 Meters | 550 Meters | 33 Meters | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 82 Meters | Not supported | Not supported |
| OM3(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 300 Meters | 100 Meters(SR4) | 100 Meters(SR4) |
| OM4(Laser Optimized) | 50/125 | Multimode | 2000 Meters | 550 Meters | 550 Meters | 400 Meters | 150 Meters(SR4) | 150 Meters(SR4) |
| Singlemode | 9/125 | Singlemode | 2000 Meters | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A | N/A |
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like
buildings, factories, office parks ,campuses and so on. Whether you
choose PVC, LSZH or OFNP jacket depends on where you're going to
run the cable.
