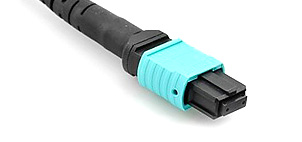

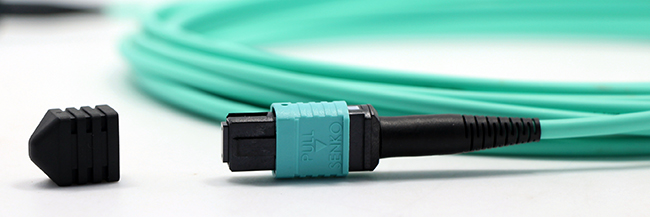

OM3 12F 3.0mm MPO Trunk Cable MPO Female to MPO Female 50 / 125μm
With LSZH Aqua 10M Polarity B MPO Fiber Cable
MPO-MPO 3.0mm LSZH Patch cable/trunk cable. MPO Fiber Patch
cable/trunk cable is terminated with MPO connector on both ends.
MPO Patch cable/trunk cables connect MPO modules together as a
permanent link. The Patch cable/trunk cables are available with 12,
24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data
center solutions. They are typically adopted to interconnect
cassettes, panels or ruggedized MPO fan-outs, and to facilitate
rapid deployment of high-density backbone cabling in data centers
and other high fiber environments. Besides, MPO also provides much
flexibility and convenience once you have to change the connector
style in the patch panels. Instead of changing the connector on the
cable trunk, just installing a new cassette with the new connector
style on the crossconnect side of the patch panel.
MPO products’ Standard:
Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5);
Telcordia GR-1435-CORE compliant
Structured cabling per TIA-568-C
Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector
terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options
available
Color coded housings available to differentiate fiber type, polish
type and/or connector grade
Good in repeatability and exchangeability
AVAILABILITY:
- Ribbon and bundle cable available;
- Patch cord, pigtail cable assemblies available.
- MT-MT ribbon patch cord is available.
- MPO Loopback available
MPO patch cord’s Specification:
| Connector A | MPO Female (pinless) | Connector B | MPO Female (pinless) |
| Fiber Mode | OM3 50/125μm | Wavelength | 850/1300nm |
| Polish Type | UPC to UPC | Minimum Bend Radius | 30mm |
| Insertion Loss | 0.35dB Max(0.15dB Typ.) | Return Loss | ≥25dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
Cable Diameter | 3.0mm | Cable Jacket | LSZH |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Storage Temperature | -40°C to +85°C | Operating Temperature | -10°C to +70°C |
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters,
gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters,
gigabit up to 1000m
MPO Interference index
| Connector type | Testing items | Min | Max |
| MPO PC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | |
| Angle_X(deg) | -0.2 | 0.2 |
| Angle_Y(deg) | -0.2 | 0.2 |
| Max.DH.All Fiber(nm) | -600 | 600 |
| Max.DH.Ave(nm) | -300 | 300 |
| Max.DH.Adj(nm) | -300 | 300 |
| Max. Core Dip(nm) | -300 | 300 |
| Fiber height(nm) | -300 | 300 |
| ROC_X(abs)(mm) | 1000 | 3000 |
| MPO APC | ROC_X(abs)(mm) | 500 | |
| ROC_Y(abs)(mm) | 50 | |
| Angle_X(deg) | -0.2 | 0.2 |
| Angle_Y(deg) | 7.8 | 8.2 |
| Max.DH.All Fiber(nm) | -600 | 600 |
| Max.DH.Ave(nm) | -300 | 300 |
| Max.DH.Adj(nm) | -300 | 300 |
| Fiberheight(nm) | | |
High Quality MPO Cable Guarantee
1. High-performance polishing machine, and complemented by
precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing
process, and making all parameters of the polished MT ferrule
complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of
optical testing required for complex and high fiber count cable
assemblies.
MPO Connector Types
| MPO Male with Pins | MPO Female without Pins |
Two other clearly visible features are the noses and guide grooves
(keys) on the top side. (Note: Female connector need to connect with male connector type.) |
MPO-MPO 12F Trunk cable drawing
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Pre-terminated MPO Technology-Polarity
The three polarity methods Type A, Type B and Type C are used to
guarantee the right bi-directional allocation.
Please Note: When it is connected with two 40G QSFP+ transceivers,
please choose the Type B Cross as polarity; when it is connected
with other equipment such as MPO LGX Cassette, you can choose any
of the polarities as you need.
Packaging
This easily taken and well-protected fiber patch cable package has
been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm .
Which carton to be used depends on goods
Qty . Packing can be customized.
