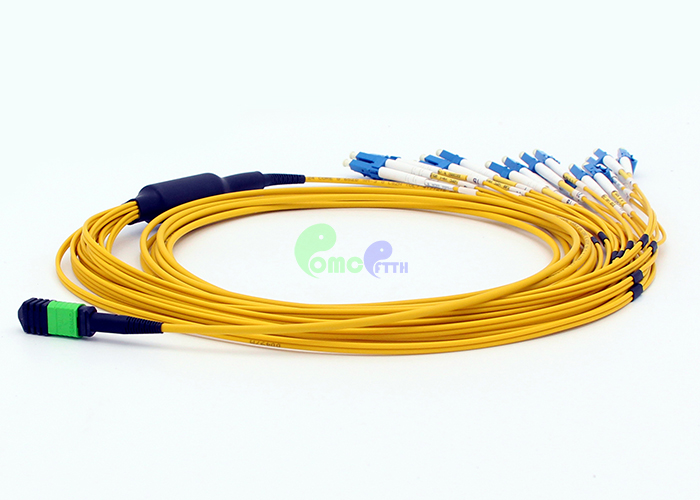

MPO Trunk Cable Pre - terminated Fanout 2.0mm 9 / 125μm 24F MPO Female to LC UPC 3.0mm Jacket OD LSZH Yellow

MPO harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. Known as MPO breakout cable or MPO fan-out cable as well, it has a single MPO connector on one end that breaks out into 8 connectors, and these connector types can be LC, SC, ST, etc. It’s available in 4, 6, 8, or 12 fiber ribbon configurations with lengths about 10, 20, 30 meters and other customized lengths. MPO harness cable provides a reliable, cost-effective cabling system for migrating from legacy 10G to higher speed 40G/100G Ethernet. The following are the advantages of MPO harness cable:

- Space saving—The active equipment and backbone cable are good for saving space.
- Easy deployment—Factory terminated system saves installation and network reconfiguration time.
- Reliability—High standard components are used in the manufacturing process to guarantee the product quality.

MPO-LC Fiber Patch Cord are terminated with MPO and LC connector on both end. All of OMC’s MPO Connectors are from Taiwan,Japan etc.

MPO products’ Standard:

- Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
- Structured cabling per TIA-568-C

Other connectors’ Industrial Standard:

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

MPO-LC OM3 24F patch cord’s Specification:

Features:

- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability

AVAILABILITY:

- Ribbon and bundle cable available;
- Patch cord, pigtail cable assemblies available.
- MT-MT ribbon patch cord is available.
- MPO Loopback available

High Quality MPO Cable Guarantee

1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

Packaging

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.

Company Information:

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

FAQ:

1. Are you the real factory?

Yes,we are the real factory more than 10 years

2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.

5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.

6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
