High Precision Fiber Cleaver OMCFC - 230 /231, Ideal for standard
fibers and various pre-polished connectors
Fiber optic cleaver is used to cut the fiberglass for fusion
splicing, also ideal for preparing fiber for pre-polished
connectors to make a good end face, and it is very important in the
fiber splicing process, usually it works together with the fusion
splicer to meet the end needs.
Specifications:
| Products | FIBER CLEAVER OMCFC - 230/231 |
| Fiber Type | Single core silica fiber |
| Outer coat diameter | φ0.25＆φ0.9 |
| Bare fiber diameter | 125μm |
| Cleaved length | 10~16mm(φ0.25) 10~16(φ0.9) |
| Dimension | 93mm(W)×102mm(D) ×50mm(H) |
| Weight | 350g |
| Adaptive value of cutting angle | ≤0.5° |
| Blade life | 78000
|
Features:
● The first step in the real sense of the precision cutting knife.
● The cutting angle is 0.5 degrees, the performance index can reach
or exceed the level of the same cutting knife.

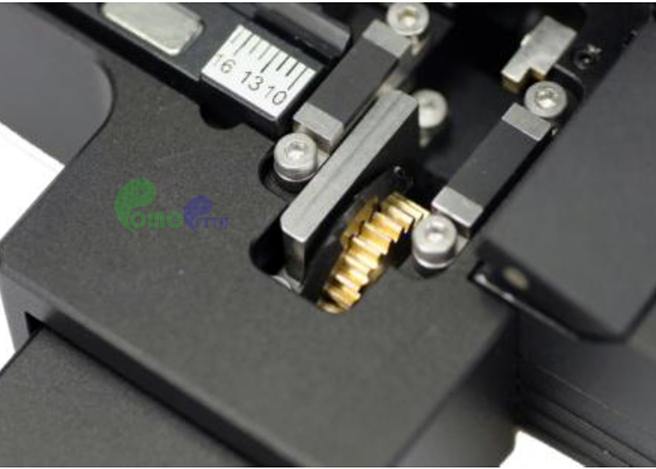

● In the process of cutting the blade automatically rotate, can
keep the blade is always sharp.
● The cutting efficiency is high, and the requirements for the
operator is lower without manual labor.
● Blade can be automatically rotated using 26 point of view, the
service life of the blade is more than 78000 times, is two times
more than ordinary cutting knife service life.
● Blade replacement, adjustment is convenient and fast, the
operation is significantly better than the international same
cutting knife.
● Keep only when the lock cover, do not take up space, without a
fixed blade.
Replacement Blade /Cutting Wheel
Auto Gear
Company Information:
OMC industry co., limited, which was founded by an expert team, has
been exporting FTTX passive products since 2007. We focus on
providing innovative and integrated FTTX solutions for a variety of
applications/Networks. Our capabilities include product/solution
design, development, enhancement and integration. Our products are
among the highest performing in the industry and truly represent
the best values in the industry. We also offer training, pre and
post-sales support. We help you select the right products for your
Optical network's needs.
