Stranded Loose Tube No-metallic Strength Member No-Armored CableⅡ GYHTY Outdoor Fiber Cable

Product details

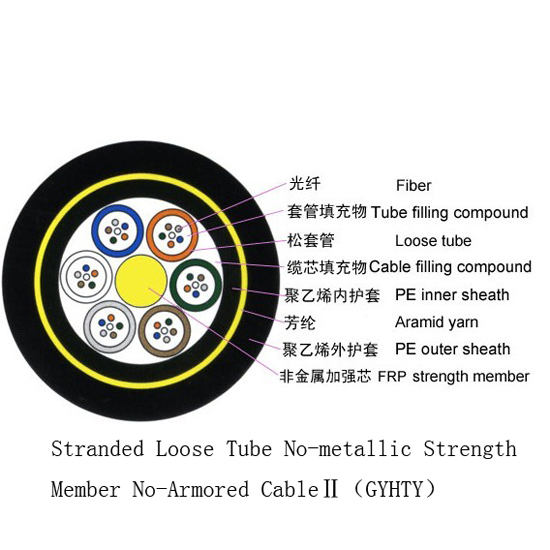

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. Then, a layer of aramid yarn is applied as additional strength member and the cable is completed with a polyethylene (PE) outer sheath.

Characteristics

• Good mechanical and temperature performance
• Aramid yarn strength member ensures good performance of tensile strength
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Crush resistance and flexibility
• The following measures are taken to ensure the cable watertight:
• Single Fiber Reinforced Plastic as the central strength member
• Loose tube filling compound
• 100% cable core filling

Standards: IEC 60794-1.

Technical Parameters.

Note:

Suffix X denotes fiber type.

The nominal value of the PE outer sheath thickness is 1.8mm. The nominal value of the PE inner sheath thickness is 0.8mm.

Package

OMC offers two types of cable package. Package 1 is usually for indoor, light weight cables. Package 2 is usually for outdoor, heavy weight cables. Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements.
