Standard Loose Tube Armored Cable Ⅱ GYTA53 Outdoor Fiber Cable
Product details

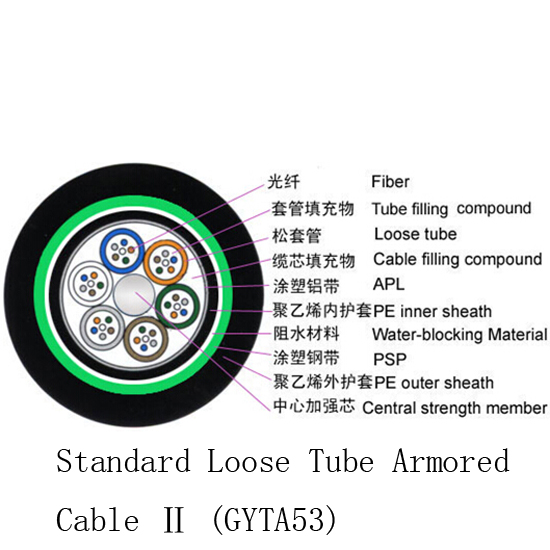

The fibers, 250µm, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. A steel wire, sometimes sheathed with
polyethylene (PE) for cable with high fiber count, locates in the
center of core as a metallic strength member. Tubes (and fillers)
are stranded around the strength member into a compact and circular
cable core. An Aluminum Polyethylene Laminate (APL) is applied
around the cable core, which is filled with the filling compound to
protect it from water ingress. Then the cable core is covered with
a thin PE inner sheath. After the PSP is longitudinally applied
over the inner sheath, the cable is completed with a PE outer
sheath.
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier
PSP enhancing moisture-proof
Water-blocking material
Standards: IEC 60794-1
Technical Parameters.
| Part No. | Fibers | Tubes | Cable OD (mm) | Weight Kg/km | Tensile strength Long term/short term (N/1m) | Crush resistance Long term/short term (N/1m) | Bending Radius Static/Dynamic (mm) |
| GYTA53-2~6X | 2~6 | 1 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-8~12X | 8~12 | 2 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-14~18X | 14~18 | 3 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-20~24X | 20~24 | 4 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-26~30X | 26~30 | 5 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-32~36X | 32~36 | 6 | 13.7 | 190 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-38~48X | 38~48 | 4 | 15.3 | 229 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-50~60X | 50~60 | 5 | 15.3 | 229 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-62~72X | 62~72 | 6 | 15.9 | 244 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-74~84X | 74~84 | 7 | 18 | 288 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-86~96X | 86~96 | 8 | 18 | 288 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-98~108X | 98~10 8 | 9 | 19.2 | 325 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-110~120X | 110~120 | 10 | 19.2 | 325 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-122~132X | 122~132 | 11 | 21.3 | 373 | 1000/3000 | 1000/3000 | 10D/20D |
| GYTA53-134~144X | 134~144 | 12 | 21.3 | 373 | 1000/3000 | 1000/3000 | 10D/20D |
Note:
Suffix X denotes fiber type.
The nominal value of the PE outer sheath thickness is 1.8mm. The
nominal value of the PE inner sheath thickness is 0.8mm.
Package
OMC offers two types of cable package. Package 1 is usually for
indoor, light weight cables. Package 2 is usually for outdoor,
heavy weight cables. Usually we only attach Test Report on the out
package of the cable, but we could also mark as your requirements.
