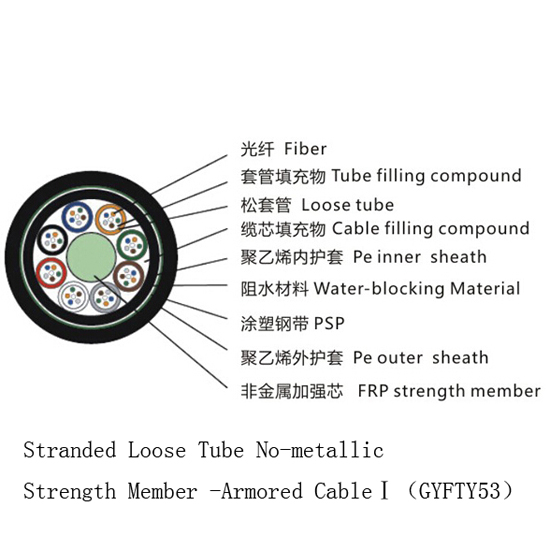

Stranded Loose Tube No-metallic Strength Member -Armored
CableⅠGYFTY53 Outdoor Fiber Cable
Product details
The fibers, 250µm, are positioned in a loose tube made of a high
modulus plastic. The tubes are filled with a water-resistant
filling compound. A Fiber Reinforced Plastic (FRP) locates in the
center of core as a non-metallic strength member. The tubes (and
fillers) are stranded around the strength member into a compact and
circular core. Then the cable core is covered with a thin
polyethylene (PE) inner sheath, which is filled with jelly to
protect it from water ingress. A layer of water-blocking material
is applied around the cable core to prevent water ingress all the
same. After a corrugated steel tape armor is applied, the cable is
completed with a PE outer sheath.
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
The following measures are taken to ensure the cable watertight:
Single Fiber Reinforced Plastic as the central strength member
Loose tube filling compound
100% cable core filling
PSP enhancing moisture-proof
Water-blocking material
Standards: IEC 60794-1.
Technical Parameters.
| Part No. | Fibers | Tubes | Cable OD (mm) | Weight Kg/km | Tensile strength Long term/short term (N/1m) | Crush resistance Long term/short term (N/1m) | Bending Radius Static/Dynamic (mm) |
| GYFTY53-2~6X | 2~6 | 1 | 15.8 | 226 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-8~12X | 8~12 | 2 | 15.8 | 226 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-14~18X | 14~18 | 3 | 15.8 | 226 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-20~24X | 20~24 | 4 | 15.8 | 226 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-26~30X | 26~30 | 5 | 15.8 | 226 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-32~36X | 32~36 | 6 | 15.8 | 226 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-38~42X | 38~42 | 7 | 15.8 | 226 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-44~48X | 44~48 | 8 | 16.8 | 255 | 1000/3000 | 1000/3000 | |
| GYFTY53-50~60X | 50~60 | 5 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-62~72X | 62~72 | 6 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-74~84X | 74~84 | 7 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-86~96X | 86~96 | 8 | 16.8 | 255 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-98~108X | 98~10 8 | 9 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-110~120X | 110~120 | 10 | 19.2 | 320 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-122~132X | 122~132 | 11 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-134~144X | 134~144 | 12 | 21.2 | 380 | 1000/3000 | 1000/3000 | 10D/20D |
Note:
Suffix X denotes fiber type.
The nominal value of the PE outer sheath thickness is 1.8mm. The
nominal value of the PE inner sheath thickness is 0.8mm.
Package
OMC offers two types of cable package. Package 1 is usually for
indoor, light weight cables. Package 2 is usually for outdoor,
heavy weight cables. Usually we only attach Test Report on the out
package of the cable, but we could also mark as your requirements.
