MTP Trunk Cable 9 / 125μm 8F MTP Male - LC UPC 0.9mm 30cm SM LSZH
Elite Type A
MTP-LC fanout trunk cables provide a transition from multi-fiber
cables to individual fibers or duplex connectors. Known as MTP
breakout cable or MTP fanout cable as well, it has a single MTP
connector on one end that breaks out into 6 or 12 connectors, and
these connector types can be LC, SC, ST, etc. It’s available in 4,
6, 8, or 12 fiber ribbon configurations with lengths below 1 meter.
MTP-SC fanout cable provides a reliable, cost-effective cabling
system for migrating from legacy 10G to higher speed 40G/100G
Ethernet. The following are the advantages of MTP harness cable:
- Space saving—The active equipment and backbone cable are good for
saving space.
- Easy deployment—Factory terminated system saves installation and
network reconfiguration time.
- Reliability—High standard components are used in the
manufacturing process to guarantee the product quality.
MTP-LC Fiber Patch Cord are terminated with MTP and SC connector on
both end. All of OMC’s MTP Connectors are from USconec.
MTP products’ Standard:
- Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5);
Telcordia GR-1435-CORE compliant
- Structured cabling per TIA-568-C
Other connectors’ Industrial Standard:
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS
C5973.
MPO patch cord’s Specification:
| Spec items. | Single mode( APC 8 degree polish) | Multimode(PC Flat polish) |
| Insertion loss(MPO) | Standard loss≤0.7dB
Low loss≤0.35dB | Standard loss≤0.5dB
Low loss≤0.35dB |
| Insertion loss(LC) | ≤0.3dB | ≤0.3dB |
| Return loss(MPO) | ≥60dB | ≥25dB |
| Return loss(LC) | UPC≥50dB | PC≥35dB |
| Durability | <0.3dBtypical change, 200 matings |
| Interchangeability | ≤0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -40 to + 85°C
|
MTP Low Insertion Loss :
MTP Connector Types:
Two other clearly visible features are the noses and guide grooves
(keys) on the top side.
(Note: Female connector need to connect with male connector type.)
Features:
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector
terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options
available
- Color coded housings available to differentiate fiber type,
polish type and/or connector grade
- Good in repeatability and exchangeability
AVAILABILITY:
- Ribbon and bundle cable available;
- Patch cord, pigtail cable assemblies available.
- MT-MT ribbon patch cord is available.
- MPO Loopback available

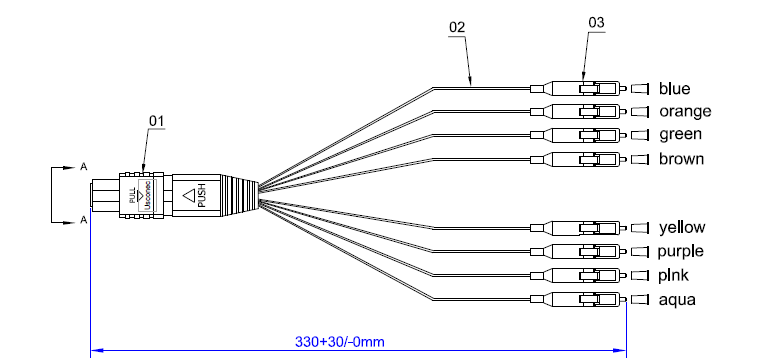

Cable drawing:
Application:
