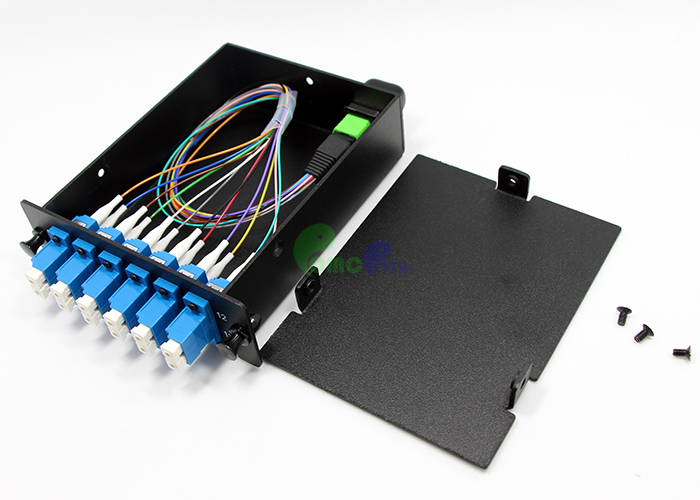

12F HD MTP To LC Cassette Duplex 12F SM Type A For Rack Mount MPO /
MTP 4 Slots Patch Panel
Type A and AF are used as a pair in a two cassette method A link.
0.35dB IL Full loaded 1x MTP Male to 6 LC Duplex Plug-Play module
is designed for 10G/40G Ethernet, fiber channel and high speed data
center.
FHD Series 12-to-1 Migration Cassettes module convert a single lane
of parallel optic signals into (12) discrete duplex LC channels. A
single MTP connector running 40G/100G is breakout to 12 lanes of
10G/40G on duplex LC. Full loaded 1xMTP Male to 6 LC Duplex
Plug-Play modules is designed for 10G/40G Ethernet, fiber channel
and high speed data center.
MTP Breakout Cassette modules is made of cold rolled steel sheet or
Aluminum, MPO/MTP Cassette Modules provide secure transition
between MTPO and LC or SC discrete connectors. They are used to
interconnect MPO backbones with LC or SC patching.
MTP/MPO Breakout Cassette module is the kind of module that allows
for rapid deployment of high-density data center infrastructure as
well as improved troubleshooting and reconfiguration during moves,
adds and changes. Which is proved to be time and energy saving as
well as cost-efficient? Moreover, it enables users to take the
fibers brought by a trunk cable and distribute them to a duplex
cable.
MTP/MPO cassette features optimized performance with low insertion
losses and power penalties, high-density and MTP/MPO interface of
superior optical and mechanical properties.
Features:
- Design for MPO/MTP SYSTEM, for quickly network deploy and quick-fix
solution
- High-density and small design;
- 8 and 12 and 24 fiber versions – 4/6/12 LC (Duplex) / SC (Simplex)
optical parts
- Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and
Single mode(OS1/2) fiber.
- Factory-terminated and -tested cable and apparatus for instant
field connections with guaranteed quality and performance
- Metallic shell with high strength protect the inner fibers
effectively
- Supports easy reconfiguration for moves, adds, and changes
- Available for the installation of LC/SC adapter.
Optical Performance:
| Fiber Count | 12F | MPO/MTP Adapter | Key up to Key down |
| Front Connector Type |
6xLC Dx SM
| Rear Connector Type | 1x MTP APC Base-12 (male) |
| Insertion Loss | MTP≤0.35dB, LC≤0.3dB | Return Loss | MTP≥60dB, LC≥50dB |
| RoHS Compliance | Applicability | Dimension(HxWxD) | 35x109x118mm |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | Storage and Shipping Temperature | -40°C to +75°C (-40°F to 167°F) |
Drawing:
Company Information:
OMC industry co., limited, which was founded by an expert team, has
been exporting FTTX passive products since 2007. We focus on
providing innovative and integrated FTTX solutions for a variety of
applications/Networks. Our capabilities include product/solution
design, development, enhancement and integration. Our products are
among the highest performing in the industry and truly represent
the best values in the industry. We also offer training, pre and
post-sales support. We help you select the right products for your
Optical network's needs.
