Brand Name : | OMC or OEM or No brand |
Model Number : | SC to LC SM Simplex Metal adapter |
Price : | Negotiable |
Payment Terms : | MoneyGram, Western Union, T/T, alipay, credit card, paypal |
Supply Ability : | 10000pcs per week |
Delivery Time : | 2-3 working days |
Certification : | ROHS and ISO |

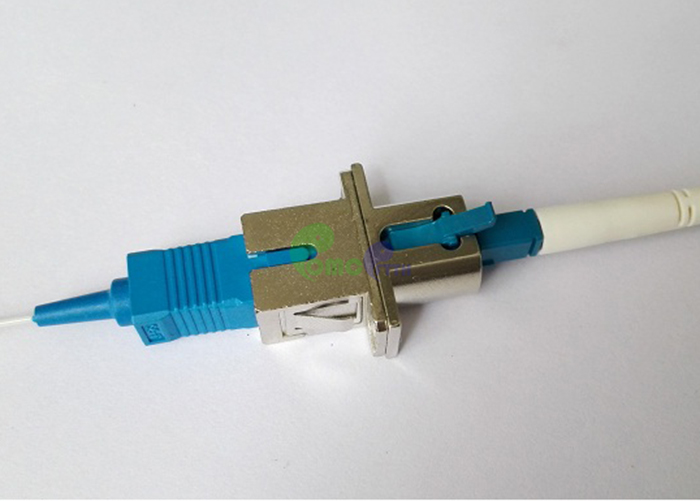

Hybrid SC UPC to LC UPC Fiber Optic Adapter SM Simplex IL< 0.2dB metal body ceramic sleeve
Optical Adapter are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adapters of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.
OMC could supply standard types of Adapters, such as FC, SC, LC, ST, MU, E2000, MTRJ, MPO/MTP etc. Hybrid is also available.
OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
Spec Performance
Connector Type | SC-LC | Polish Type | UPC |
Fiber Counts | Simplex | Fiber Mode | Singlemode |
Insertion Loss | ≤0.2dB | Durability | ≤0.1dB |
Flammability Rate | UL94-V0 | Working Temperature | -25~70°C |
Application
Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
